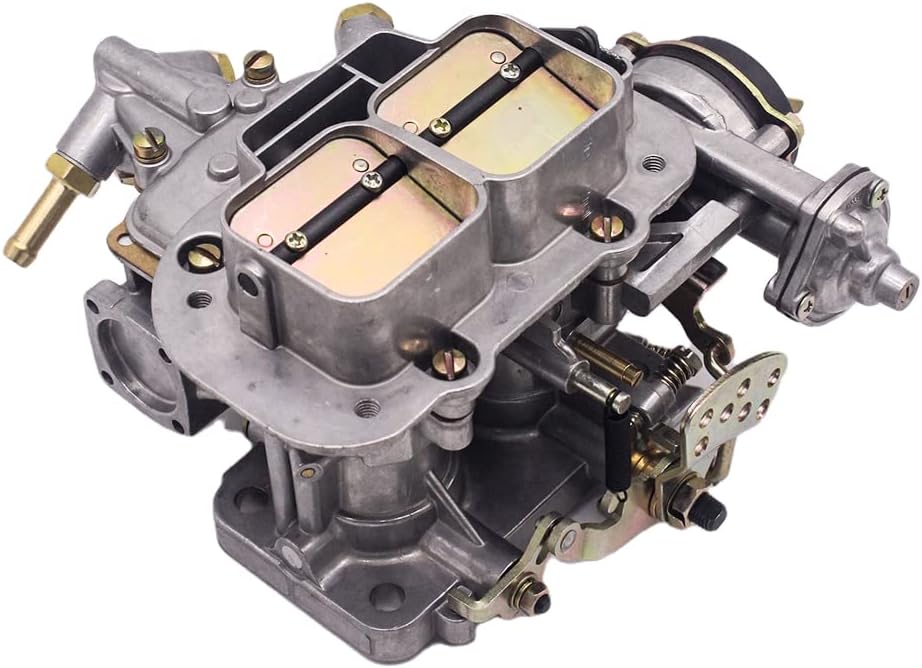

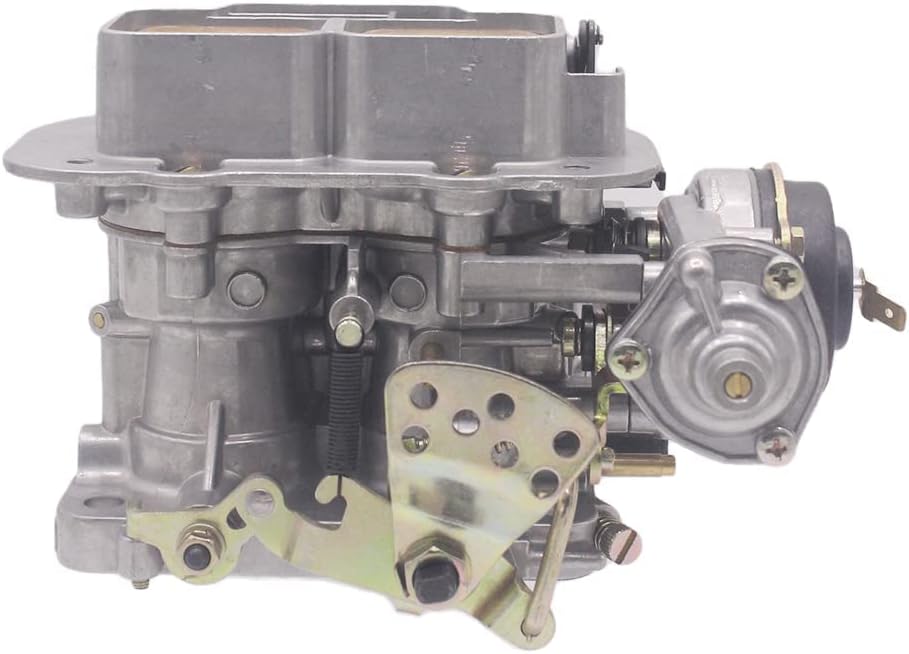

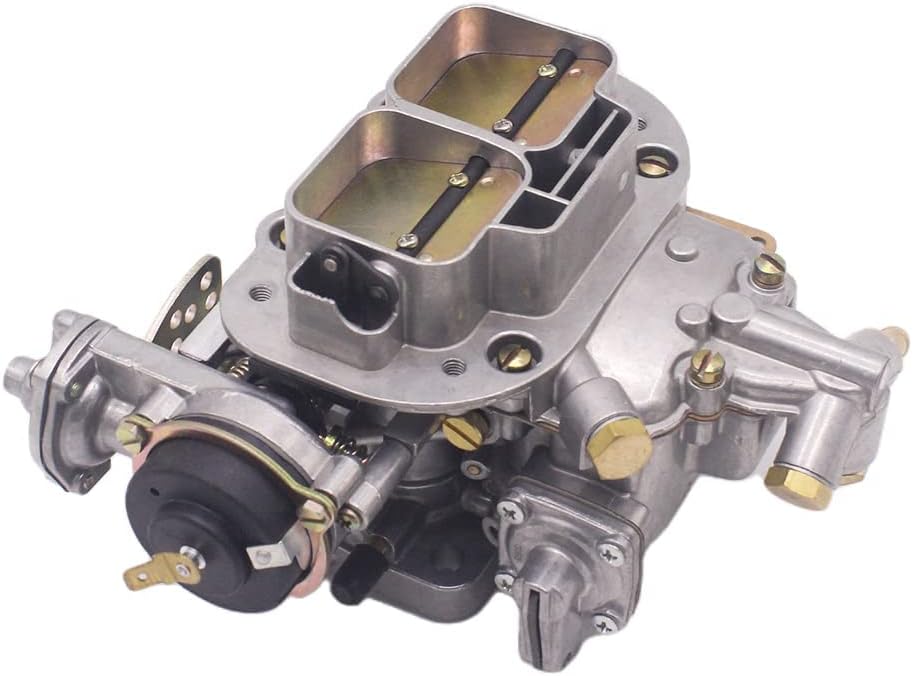

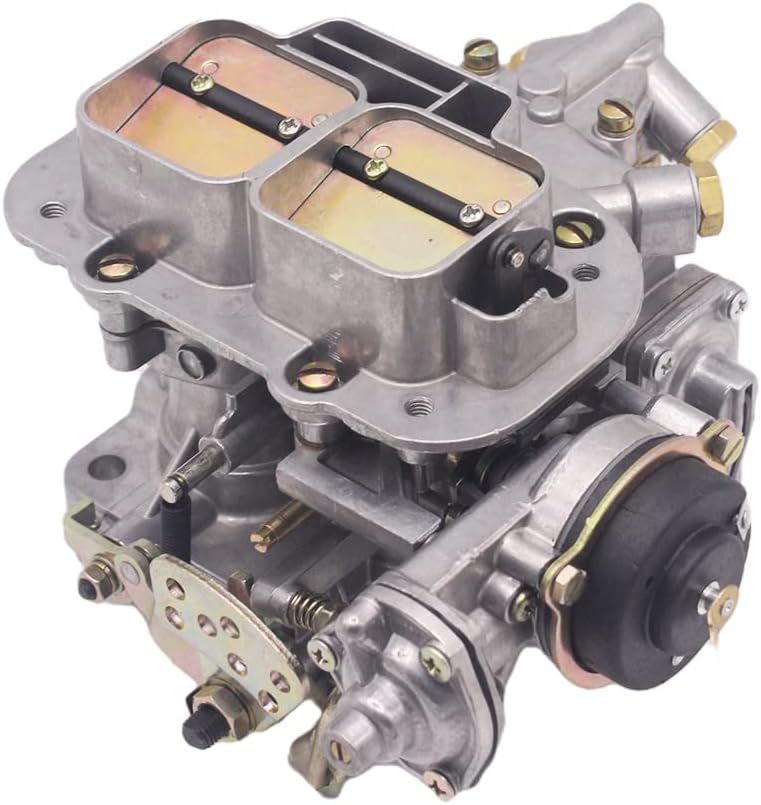

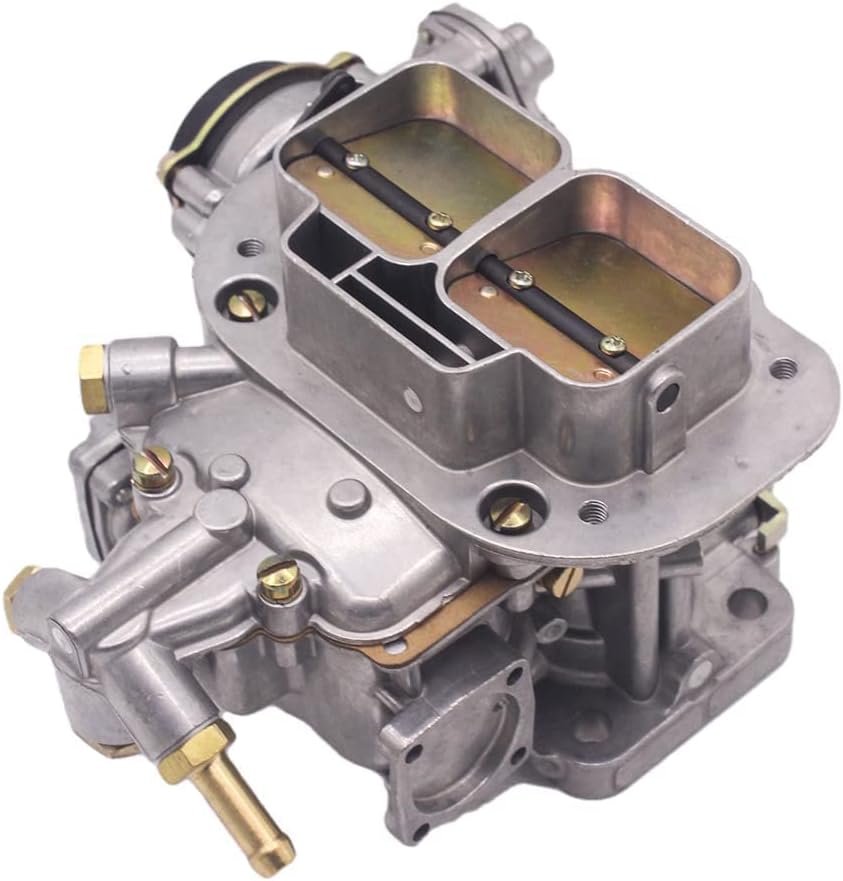

2 Barrel Carburetor with Electric Choke Z8851

Replace Part Number:

Weber 32/36 DGEV DGV DGAV

Application:

1969-1972 Datsun Pickup L16 (1600cc) PL521 also fits Datsun 510

1973-1974 Datsun Pickup L18 (1800cc) PL620 also fits 510, 610, and 710

1975-1980 Datsun Pickup L20 (2000cc) PL620 also fits 510, 610, and 710

1982- 1978 Datsun 200SX 2.2L

1981-1982 Nissan Pickup Z20 (2000cc) PL720

1981-1983 Nissan Pickup Z22 (2200cc) PL720

1980-1981 Nissan 200SX

Nissan Sentra 1.5L 1.6L 1986

Nissan 720 2.0L 2.2L 1984

Nissan Pulsar 1.6L 1983

1972-1990 CJ5, CJ7, CJ8, Wrangler Cherokee with a 258Ci W/ 2BBL Carter BBD Carb

1986-1987 Mazda B2000 2.0L

1987-1993 Mazda B2200 2.2L

Specifications:

primary Venturi: φ26mm

Secondary Venturi;φ10.5mm

Primary Auxiliary Venturi; φ27mm

Secondary Auxiliary Venturi;φ10.5mm

Primary Main Jet;1.4mm

Secondary Main Jet; 1.4mm

Primary Air Corrector Jet;1.7mm

Secondary Air Corrector Jet :1.6mm

Primary Emulsion Tube; F50

Secondary Emulsion Tube; F50

Primary idle Jet;0.6mm

Secondary Idle Jet; 0.5mm

Pump Jet;φ0.5mm

Needle Valve; 2.0mm

Float Measurement :47mm

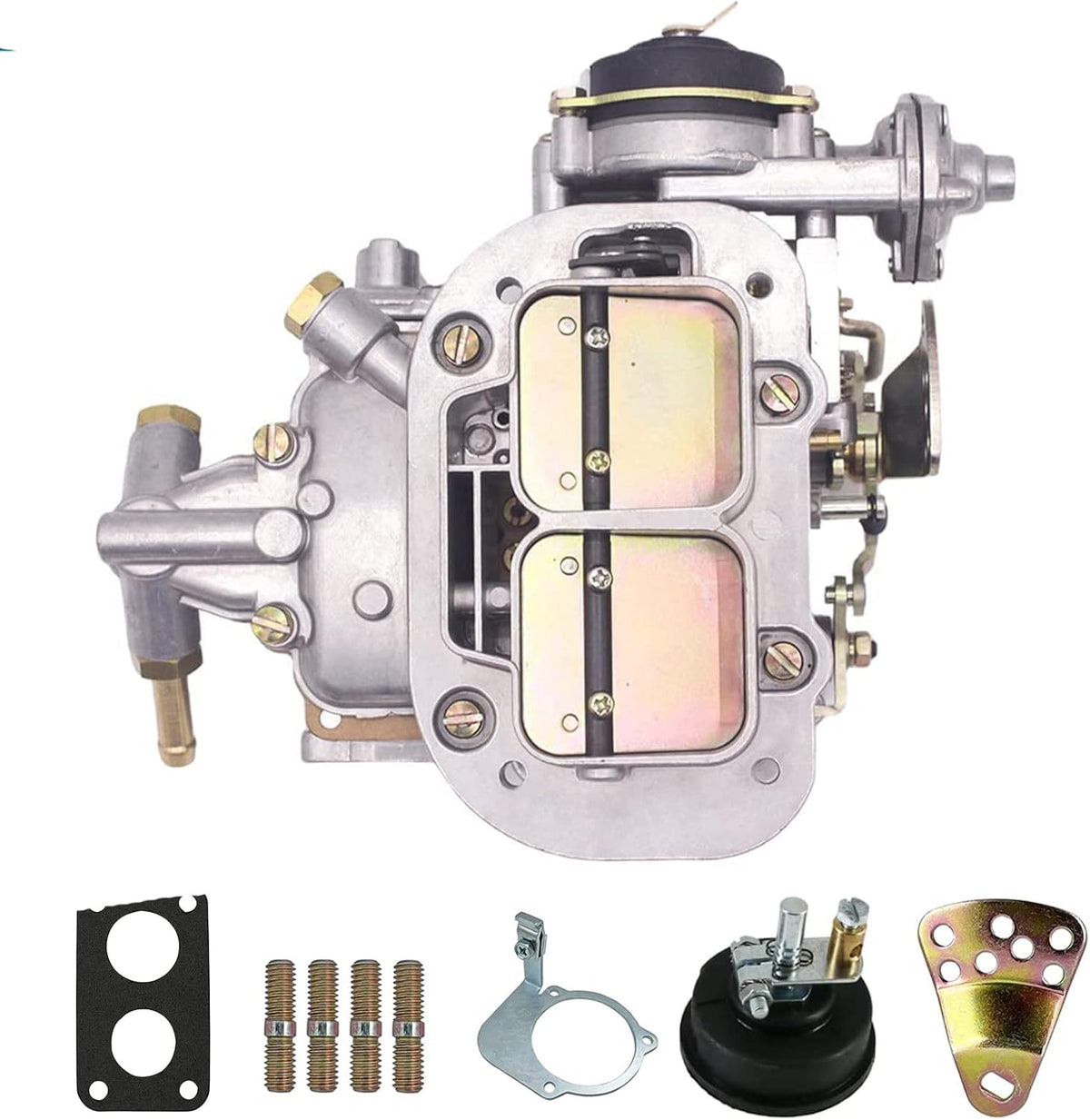

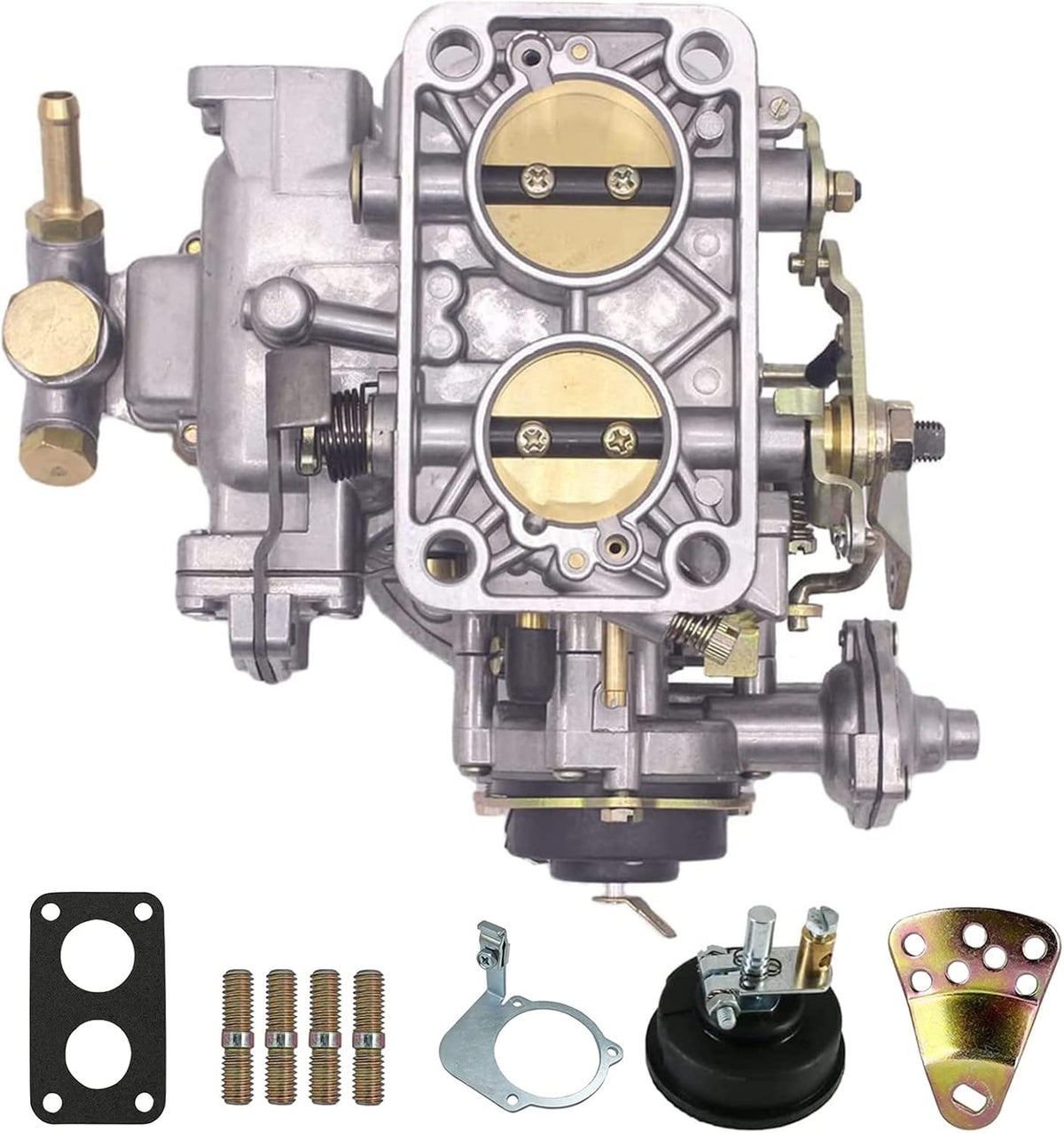

Package Include:

1 piece Carburetor Electric Choke

1 set Manual Choke Conversion Kit
